CryoPen XPS cryosurgery device ideal for ophthalmology
Cryosurgery in a Nutshell
The CryoPen This powerful, ergonomic cryotherapy pen delivers a fine jet of nitrous oxide under high pressure, allowing you to work with millimeter precision. The CryoPen XPS is our most compact model and is suitable for intensive and versatile use, especially in ophthalmology.
- Ergonomic design for excellent control
- State-of-the-art microtechnology for controlled gas flow
- Ultra fine and precise
- Easy to load 8g N₂O cartridges
- Aluminum housing with 2 micro-applicators made of medical material
- For intensive yet gentle freezing performance
- Lower risk of infection than during surgery
- Used for lesions, adenomas, distichiasis, epulis, eyelid adenomas, meibomian gland dysfunction, sarcoidosis, warts and other types of lesions, as well as benign tumors and carcinomas
Continuous flow time with an 8g cartridge
- 1–3 mm applicator approx. 4 min
- 2–4 mm applicator approx. 3 min
Application
No special preparation required. Apply the jet of nitrous oxide to each lesion for 2 to 45 seconds, depending on the size and depth of the lesion. Depth achieved during treatment: 1 mm after 3 seconds, 2 mm after 8 seconds, 3 mm after 16 seconds, 4 mm after 26 seconds. Maximum possible depth depending on the tip used: approx. 3–6 mm.
Technical data
- Constant treatment temperature: -89°C / -128°F
- Pressure: 55 bar

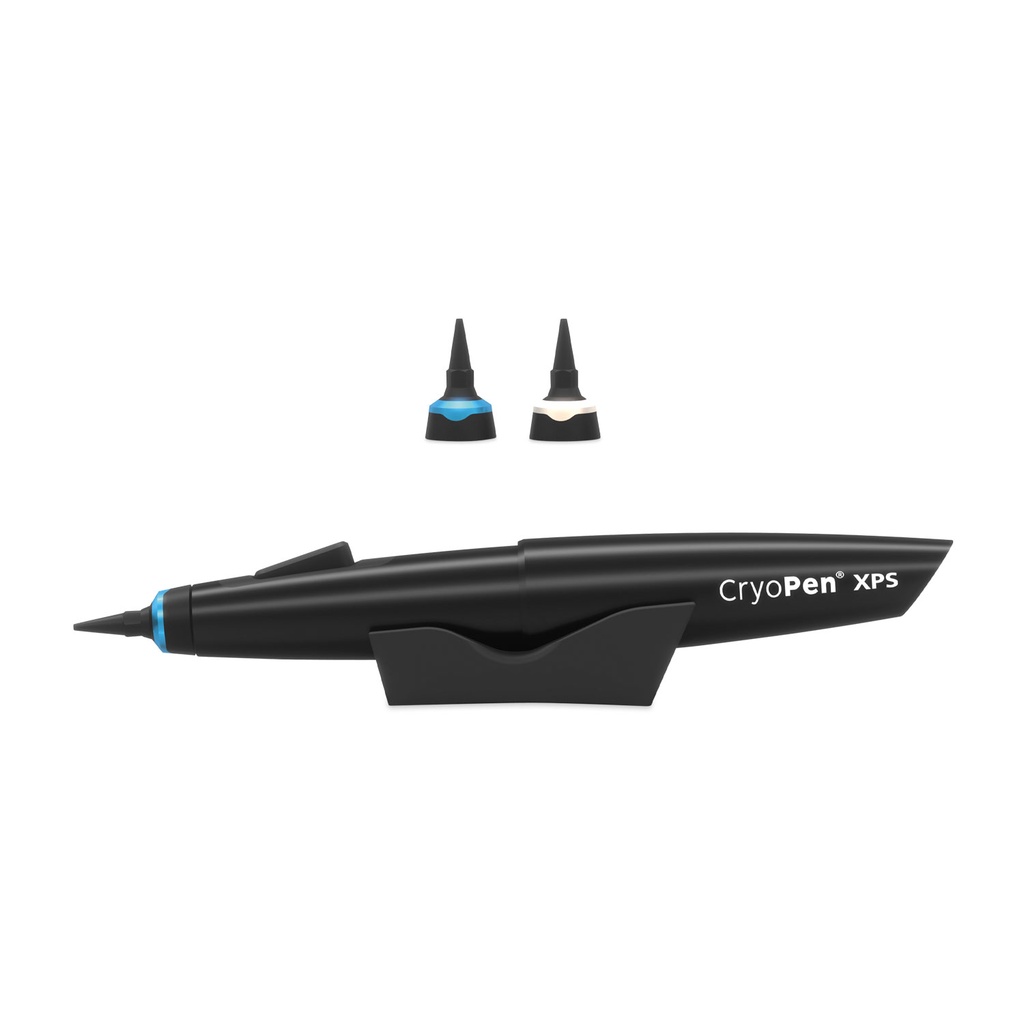

- Includes 2 autoclavable applicators: blue, 1–3 mm and white, 2–4 mm
- Incl. 12x 8 g cartridges
- Weight of device with full cartridge: 200 g
- Dimensions (in cm): 20 x 2.75 x 2.75
