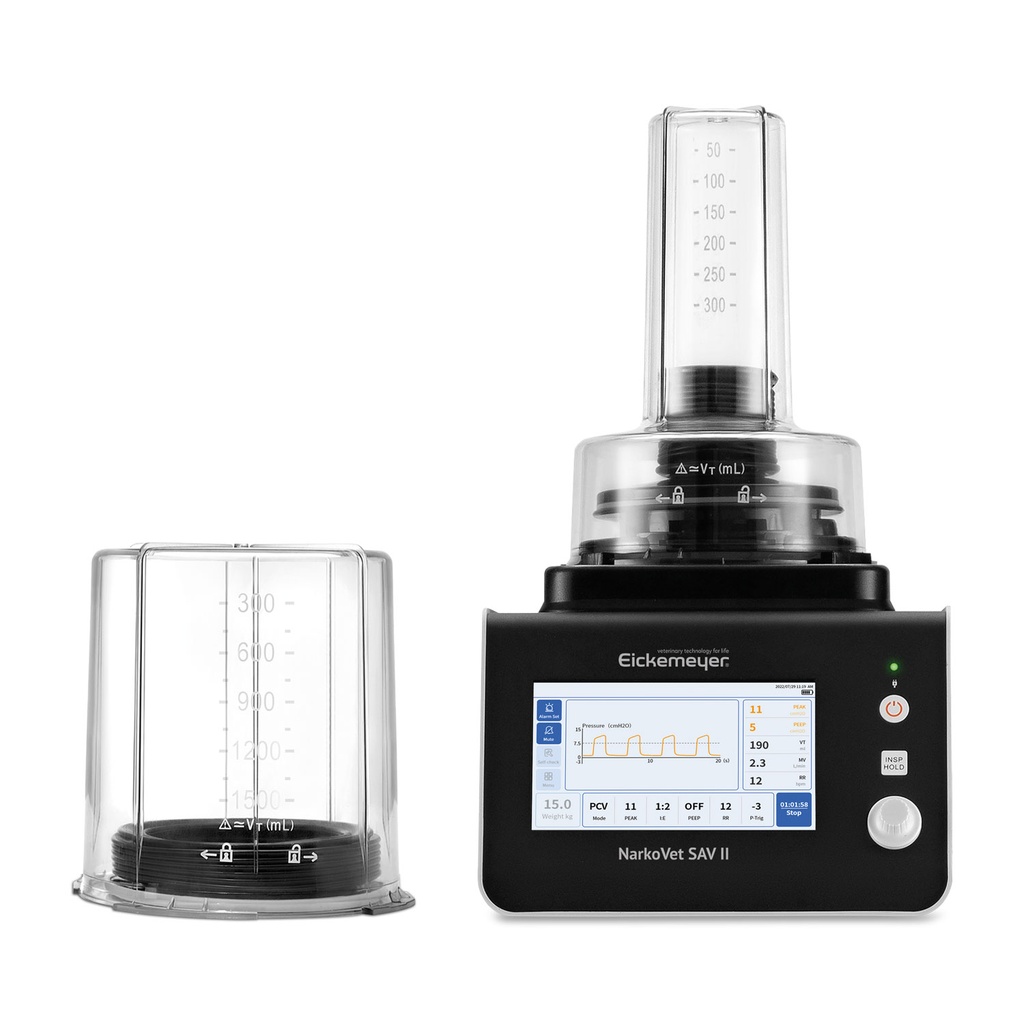

NarkoVet SAV II Small Animal Ventilator

https://www.eickemeyer.de//web/image/product.template/110881/image_1920?unique=3cad9bc

€ 0.00 0.0 EUR € 0.00

€ 3,495.00

Price visible after login

Item No. 213020

    This combination does not exist.


    The main cause of serious anaesthetic incidents in veterinary practices is the patient's unnoticed apnoea. Routinely controlled ventilation helps to drastically reduce the risk of anaesthesia and thus ensures the optimal safety of your patients.

    Ventilation is implemented via a high-performance electronic turbine, which means that no drive gas (e.g. from an external compressor) is required. The setting of the NarkoVet SAV is extremely user-friendly, just set the patient's body weight and the intelligent software automatically adjusts all other ventilation parameters.

    • Electronically driven by a high-performance turbine, no drive gas required
    • Precise ventilation with a minimum tidal volume down to 4 ml
    • Once inputting animal weight, smart respiratory parameters can be called up
    • Ventilation modes: Volume-controlled ventilation (VCV), pressure-controlled ventilation (PCV) and Positive end-expiratory pressure (PEEP)
    • PEEP function helps veterinary surgeons solve low SpO2 problems during surgery
    • Accurate and continuous monitoring of respiratory status ensures high patient safety
    • Multiple alarms and clear handling prompts ensure high patient safety
    • Clear "at a glance" ventilation parameters thanks to the large colour display
    • Auto system leak test with graphical guidance for quick start

    Technical specifications

    • Ventilation rate: 2 – 60 bpm
    • Tidal volume: 4 – 1,500 ml
    • Maximum ventilation pressure: 5 – 50 cmH₂O
    • PEEP: 3 – 20 cmH₂O, off
    • Release pressure (PEEP off) -10,0 – -1,0 cmH₂O
    • Release pressure (PEEP on) -10,0 – -4,0 cmH₂O
    • Patient weight range: 0,4 – 150 kg
    • Touchscreen: 7-inch LCD colour display, 1,024 x 600 pixel
    • Power supply: 100 – 240 V
    • Dimensions (in cm): L 291 x W 336 x H 462
    • Weight: approx. 8,5 kg
