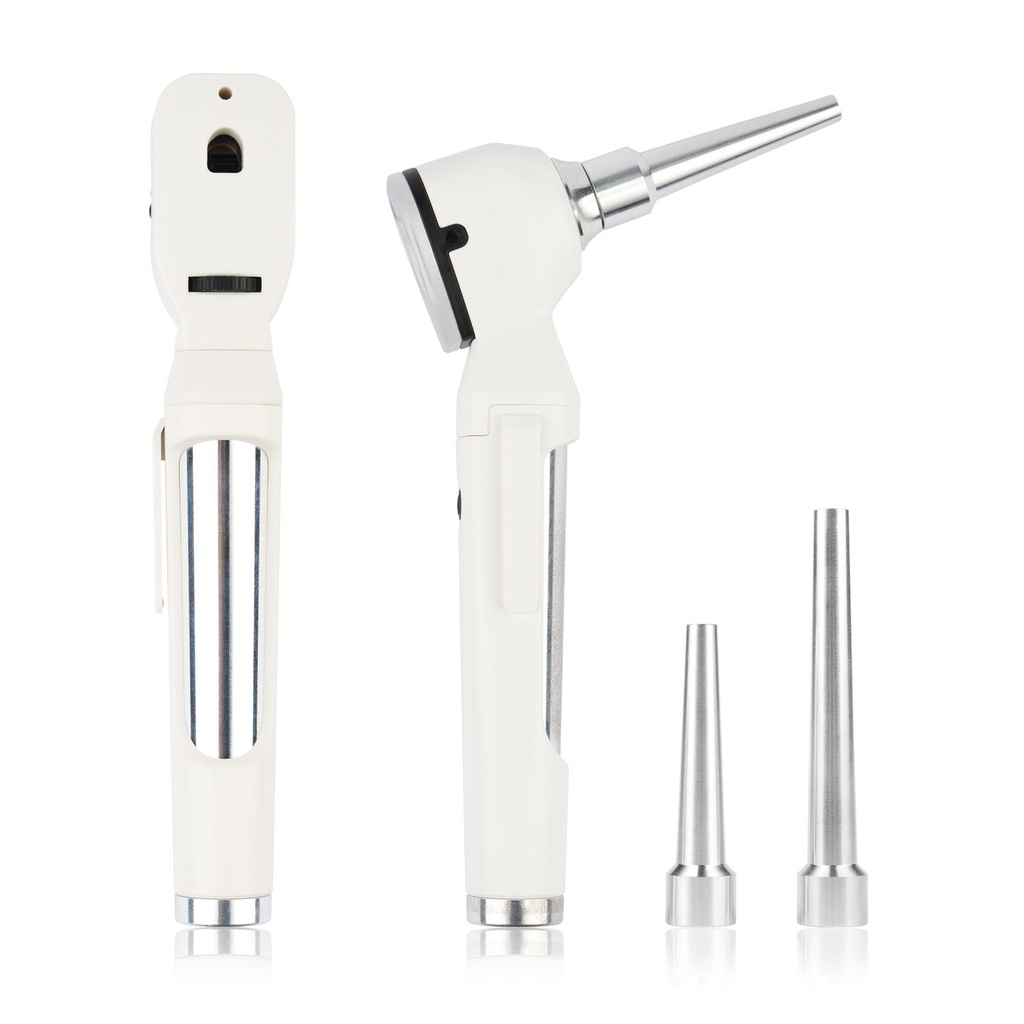

The EICKEMEYER® POCKET Diagnostic Set consists of two small pocket instruments—a veterinary otoscope and a veterinary ophthalmoscope—whose compact size makes them perfect for house calls. With its swivel magnifying lens and three reusable veterinary specula, the otoscope is highly versatile for clinical use. The ophthalmoscope features dimmable LED illumination, allowing individually adjustable brightness that is comfortable for the patient.
Otoscope Technical Data
- Dimmable LED ring with 6 LEDs (concentric)
- Illumination intensity: approx. 10,000 Lux
- Color temperature: 4,200 K
- LED lifespan: approx. 100,000 hours
- Swivel 1.7× magnifying lens
- Maintenance-free, no lamp replacement required
- Automatic shutdown after 3 minutes
- Power supply: 2× AAA alkaline batteries (included)
- Includes three veterinary specula (57 × 4 mm, 65 × 6 mm, and 90 × 7 mm) made of aluminum
Ophthalmoscope Technical Data
- 5 apertures: crosshair, large circle, small circle, semicircle, green filter
- Correction range: +20 to -20 D
- Dimmable LED illumination
- Illumination intensity: approx. 10,000 Lux
- Color temperature: 4,200 K
- LED lifespan: approx. 50,000 hours
- Maintenance-free, no lamp replacement required
- Automatic shutdown after 3 minutes
- Power supply: 2× AAA alkaline batteries (included)
