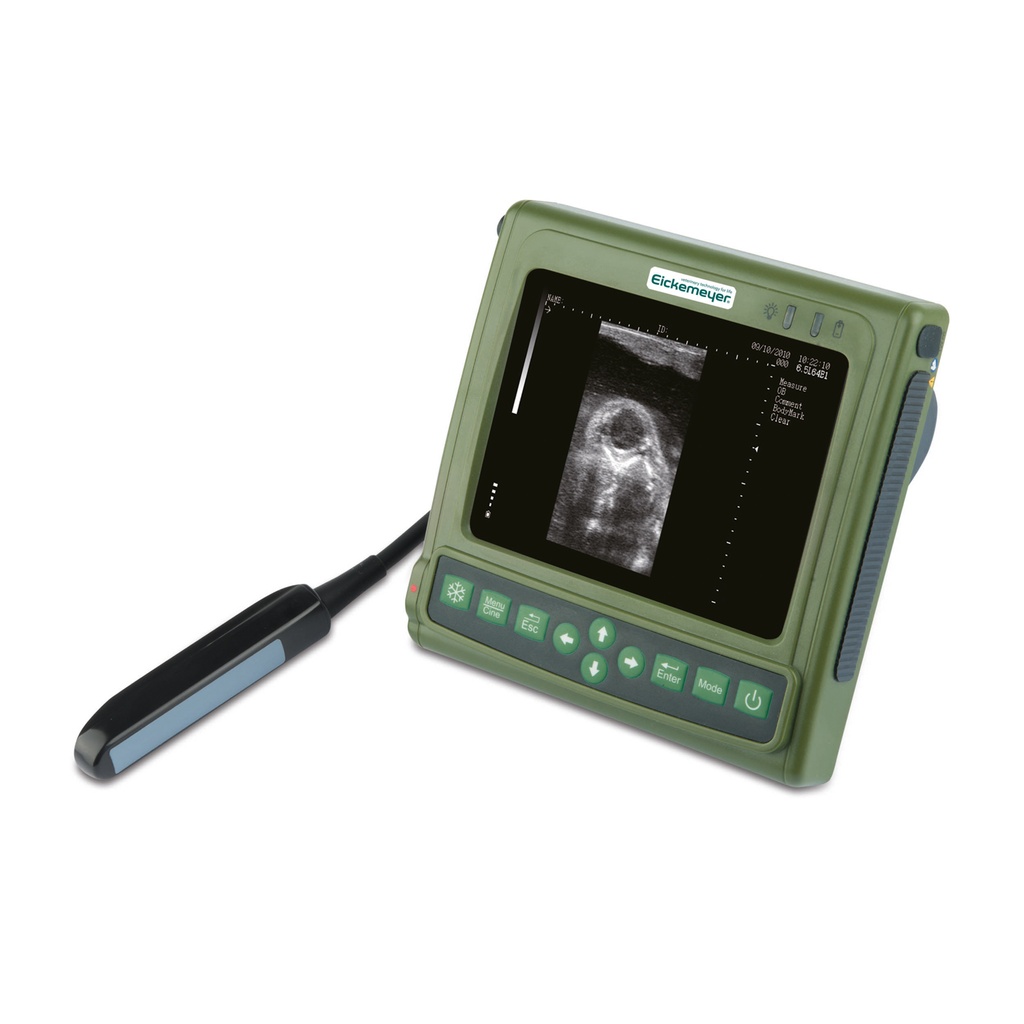

Magic 500 PLUS Portable Ultrasound Machine

https://www.eickemeyer.de//web/image/product.template/17333/image_1920?unique=0518e90

€ 0.00 0.0 EUR € 0.00

€ 4,115.00

Price visible after login

Item No. 303790

    This combination does not exist.


    The MAGIC 500 PLUS sets a new standard of mobility for pregnancy testing in the field. With only 1.1 kg and an integrated rechargeable battery, it ensures maximum comfort and user friendliness

    Features:

    • Long service life: due to the long battery life of the battery supplied, unforeseen extended scanning sessions are not a problem.
    • Efficient workflow: Performing measurements on stored images ensures an efficient examination process
    • Via a WiFi connection images and videos can be transmitted wirelessly to external devices (PC, laptop, tablet, smartphone) as well as monitors
    • Higher diagnostic reliability with Cine Memory (256 frames)
    • Individually adjustable ultrasound image
    • Protection by splash-proof venting and membrane keypad
    • Mounting rings and straps for easy hanging around the neck

    Areas Of Application:

    Pregnancy examinations in cattle and horses

    Adjustment aids for optimal work

    • Standard measurements and vet pregnancy calculation
    • Anti-reflective ultrasound image individually adjustable
    • Measurements below 1 mm possible (fat layer thickness measurement)
    • Back fat and loin thickness calculation

    Technical specifications:

    • 15cm LED Monitor
    • Black-and-white system
    • Images and video clips can be saved on the device
    • Incl. a switchable, changeable transducer 6.5 MHz, linear rectal, frequency switching of: 4.5 / 5.5 / 6.5 / 7.5 MHz
    • Incl. a glove for the left hand (right glove can be reordered)
    • Incl. Carrying case
    • Integrated battery with up to 5 hours runtime
    • Dimensions (in cm): W 16 x H 16 x D 7
    • Weight: 1.1 kg

    Further Information:

    Brochure (1 MB)
