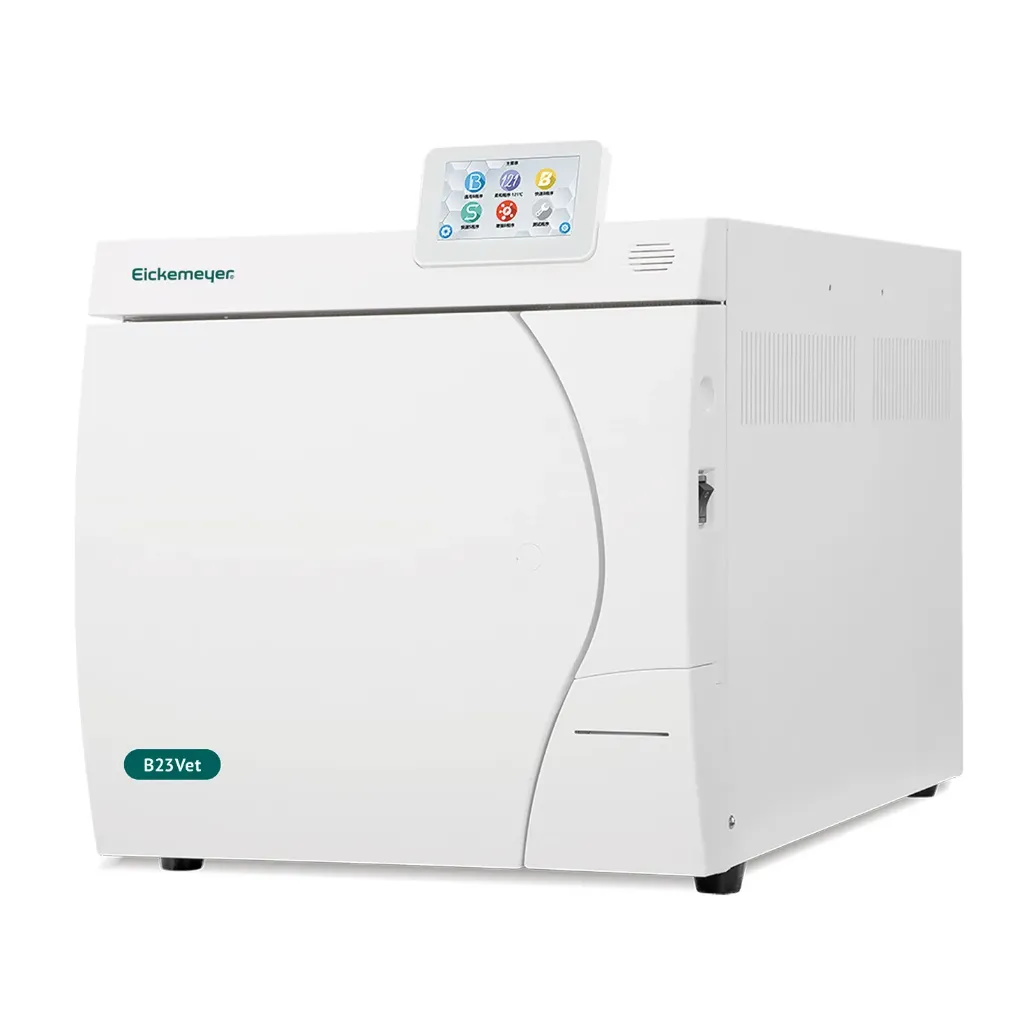

EICKEMEYER® B23Vet Autoclave

Reliable Class B Sterilization for Veterinary Practices

The EICKEMEYER® B23Vet is a high-performance Class B steam autoclave designed for the daily sterilization requirements of veterinary practices and clinics. Advanced triple pre-vacuum technology, efficient vacuum drying and intuitive operation ensure reliable sterilization of surgical instruments, dental instruments, hollow instruments and textile materials.

The fully automatic electric door, integrated cycle documentation and user-friendly colour touch screen provide maximum convenience and full traceability of every sterilization cycle.

Highlights

• 23 L stainless steel chamber for a wide range of instrument sets
• Class B sterilization according to EN 13060
• Triple pre-vacuum technology for optimal steam penetration
• Efficient vacuum drying with Hot Air Forced Circulation (HAFC)
• Fully automatic electric door for convenient operation
• Intuitive colour touch-screen display
• Integrated thermal printer for cycle documentation
• USB interface for exporting sterilization records
• Automatic clean and waste water management
• Suitable for wrapped and unwrapped instruments, hollow instruments and textiles

Technical Specifications

• Sterilization Class: Class B (EN 13060)
• Chamber Capacity: 23 L
• Chamber Dimensions: Ø 250 × 470 mm
• Chamber Material: Stainless steel
• Sterilization Temperatures: 121°C / 134°C
• Vacuum System: Triple pre-vacuum
• Drying System: Vacuum drying with Hot Air Forced Circulation (HAFC)
• Door: Fully automatic electric door
• Display: Colour touch screen
• Sterilization Programs: 5 automatic programs
• Test Programs: Vacuum Test, Bowie-Dick Test, Helix Test and Leak Test
• Clean Water Tank: 5 L
• Waste Water Tank: Integrated
• Documentation: USB export and integrated thermal printer
• Communication: USB, RS-232
• Power Supply: AC 220–230 V, 50/60 Hz
• Power Consumption: 2,300 W
• Dimensions (L × W × H): Approx. 660 × 460 × 450 mm
• Weight: Approx. 52 kg

Applications

The EICKEMEYER® B23Vet is suitable for sterilizing:

• Surgical instruments
• Dental instruments
• Wrapped and unwrapped instruments
• Hollow instruments (Type A & B)
• Porous loads
• Textile materials

Designed for demanding veterinary environments, the B23Vet combines reliable sterilization performance, intuitive operation and complete cycle documentation in a compact and efficient system.
