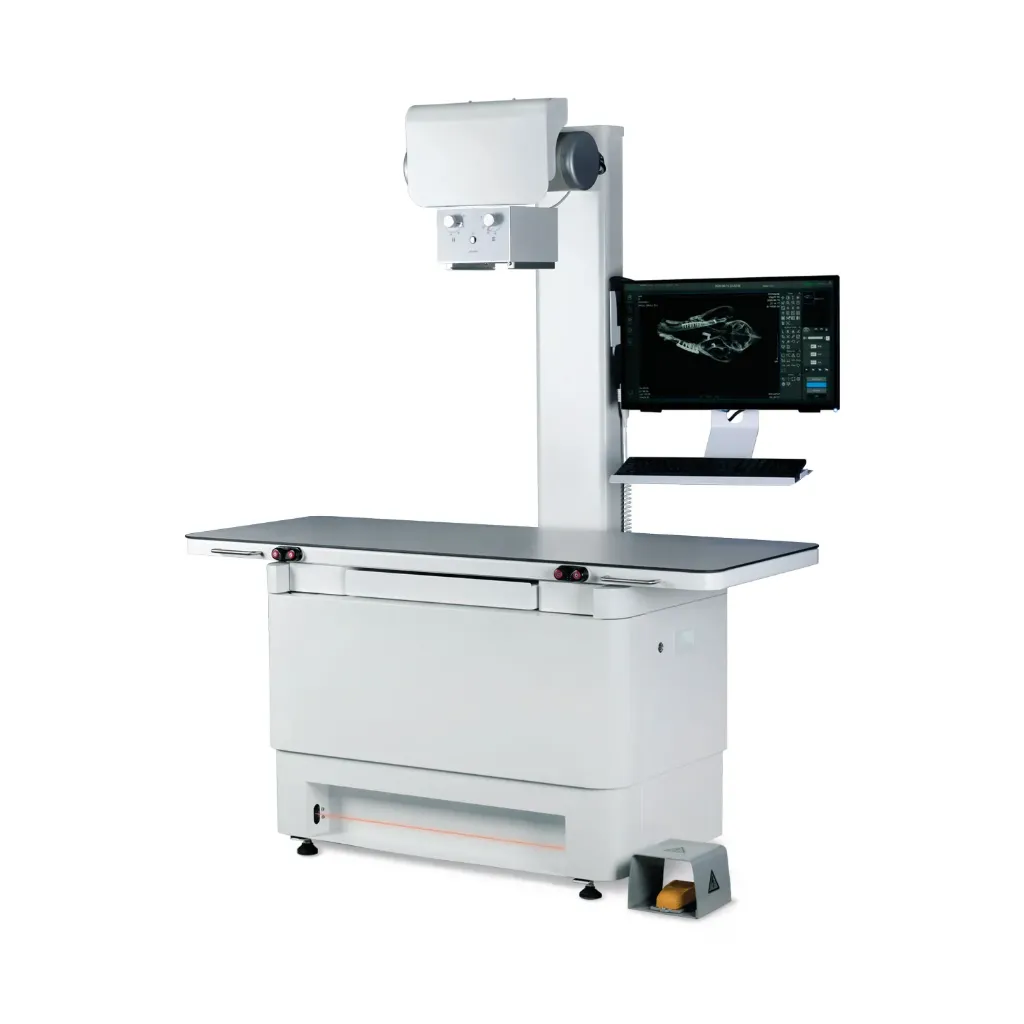

HiRay 32
Ultra-High Frequency Digital Radiographic System
Key Features & Benefits
- Up to 32 kW generator power with only 3 kVA single-phase power supply
- 500 kHz ultra-high-frequency generator with integrated capacitor energy storage
- 43 × 43 cm high-performance CsI flat-panel detector
- 139 µm pixel size and 2,912 × 2,912 pixel matrix
- 16-bit A/D conversion for high-quality digital imaging
- 3.6 lp/mm spatial resolution
- Large 430 × 430 mm imaging area
- Fast image acquisition with preview and post-processing in approximately 3 seconds
- Low radiation dose thanks to efficient digital detector technology
- Canon rotating-anode X-ray tube
- Up to 125 kVp / 400 mA / 32 kW
- Two focal spots: 0.6/1.2 mm and 1.0/2.0 mm
- Tube heat capacity: 140 KHU
- Designed for up to 100,000 exposures
- Manual collimator with 6 pairs of adjustable leaves
- Integrated 160 lux LED light field
- Automatic LED light shut-off after 30 seconds
- Integrated retractable measuring tape
- 21" touchscreen workstation
- User-friendly interface with quick access to frequently used functions
- Automatic pre- and post-image enhancement
- Dedicated veterinary measurement tools including VHS, HD, TPLO and TTA
- Automatic exposure parameter calculation based on patient/body thickness
- Automatic adjustment of kV, mA and mAs
- APR anatomical programs for efficient workflow
- DICOM 3.0 compatibility
- 2-step hand switch with extended cable
- Additional foot switch for exposure control
- 4-way floating table for precise and comfortable patient positioning
- Electromagnetic brakes for all table movements
- Laser-controlled brake release mechanism
- Fixed 1,000 mm SID
- Table movement: ±150 mm longitudinal and ±150 mm horizontal
- Table size: 1,500 × 610 mm
- Additional 300 mm table extension
- Maximum table load: 100 kg
- Generator integrated into the table
- Overall dimensions: 1,500 (1,800) × 860 × 2,000 mm
Technical Specifications
Flat-Panel Detector
- Technology: TFT with direct-deposition CsI
- Pixel size: 139 µm
- Pixel matrix: 2,912 × 2,912
- A/D conversion: 16 bit
- Spatial resolution: 3.6 lp/mm
- Imaging area: 430 × 430 mm
- Dimensions: 460 × 460 × 15 mm
X-Ray Generator
- Frequency: 500 kHz
- Power: 32 kW
- Power supply: 3 kVA, single phase, 220/240 VAC
- Voltage range: 40–125 kVp
- Current range: 10–400 mA
- APR anatomical programs
- AEC and automatic exposure parameters
X-Ray Tube
- Manufacturer: Canon
- Rotating anode
- Maximum voltage: 125 kVp
- Focal spots: 0.6/1.2 mm and 1.0/2.0 mm
- Anode target angle: 14°
- Heat capacity: 140 KHU
- Designed for up to 100,000 exposures
Floating Table
- 4-way movement
- Longitudinal movement: ±150 mm
- Horizontal movement: ±150 mm
- Fixed SID: 1,000 mm
- Table top: 1,500 × 610 mm
- Table extension: +300 mm
- Maximum load: 100 kg
- Generator integrated into table
- Dimensions: 1,500 (1,800) × 860 × 2,000 mm
