DigiVet® DR Equine WLAN-Panel Set

https://www.eickemeyer.de//web/image/product.template/109006/image_1920?unique=303d915

€ 0.00 0.0 EUR € 0.00

€ 19,995.00

Price visible after login

Item No. 708500

    This combination does not exist.


    For digital X-ray imaging in the mobile equine practice

    The DigiVet® DR Equine WLAN panel set impresses with its simple operation, fast, wireless transmission speed and razor-sharp, high-resolution X-ray images.

    • Active area of ​​25 x 30 cm (10 x 12")
    • Highest resolution through CsI PLUS scintillator
    • High spatial resolution with a field size of 124 µm for each pixel
    • Fast, wireless data transmission via WLAN
    • Stable and reliable automatic exposure detection (Anytime™)
    • Direct communication with smart devices (Inside AP™)
    • Viewer software runs on the Windows™ operating system (VXvue™)
    • Areas of application: horse and cephalometrics

    Technical specifications:

    • Scintillator: CsI (DQE technology for reduced dose)
    • Pixel pitch: 124µm x 124µm
    • Resolution: > 4 lp/mm
    • Active area: 2048 x 2560 pixels
    • Analog to Digital Conversion (AD Conversion): 16 bits
    • Grayscale: 16,384 levels
    • X-ray voltage range: 40 – 150 kVp
    • X-ray generator interface: Automatic trigger: AED (Automatic Exposure Detection) mode
    • Wireless interface: IEEE 802.11ac (2.4GHz / 5GHz dual band)
    • Image acquisition time (by cable): 1.5 sec.
    • Image acquisition time (via WiFi): 3 sec.
    • Battery : Lithium Ion, 3,400 mAh, 8 hours standby or approx. 750 shots
    • Dimensions (in cm): L 28.7 x W 35 x H 1.5
    • Weight: 2.1kg

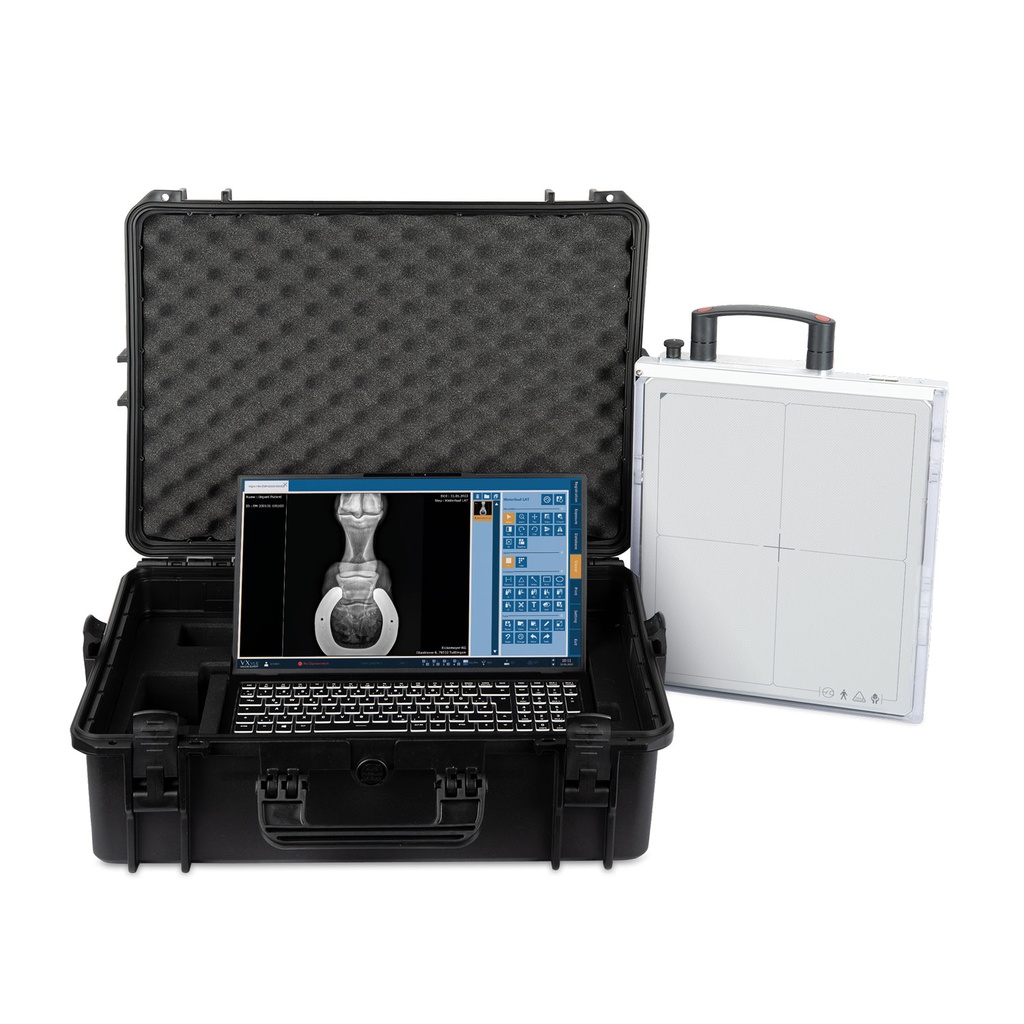

    Set consists of:

    • DigiVet® DR Equine WiFi panel
    • VXvue™ image editing software
    • High-end notebook with 15.6'' full HD monitor
    • PODOBLOCK® protection box
    • Outdoor case for all components
