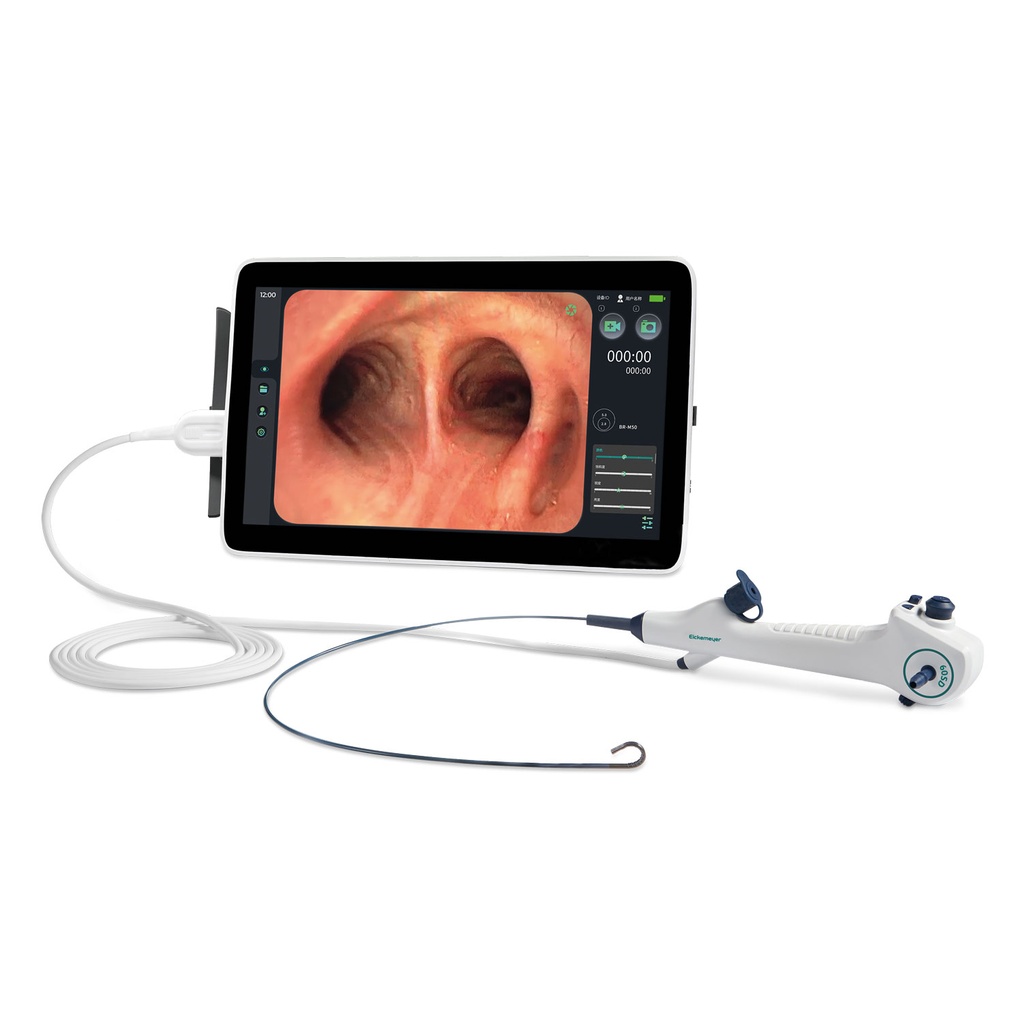

Discover the future of veterinary medicine with the EickView SD Endoscopy System!
The high-quality endoscopy monitor with a large, intuitive touchscreen connects seamlessly to three versatile semi-disposable endoscopes. Enjoy the benefits of flexible endoscopy in areas such as gastroscopy, bronchoscopy and rhinoscopy without the high investment required for traditional video endoscopes. Each endoscope is equipped with a high-resolution CMOS image sensor and LED light source that provide you with crystal-clear images. With the EickView SD Endoscopy System, you can make precise diagnoses and ensure the best possible care for your animal patients.
EickView SD endoscopy monitor (item no. 307000)
- 15.6" touchscreen with 1,920 x 1,080 full HD resolution
- Functions: white balance, zoom, freeze, photo (JPG) and video recording (MP4)
- 64 GB storage capacity
- Mains and battery operation, battery life up to 5 hours
- Outputs: HDMI, DVI, SDI and USB
- Dimensions (in cm): W 39 x H 25 x D 4
- Weight: 2.7 kg
EickView 150SD "Semi-Disposable" endoscope (item no. 307010)
- Working length: 150 cm
- Outside Ø: 6.0 mm
- Working channel Ø: 2.8 mm
- Direction of view: 0°
- Viewing angle: 120°

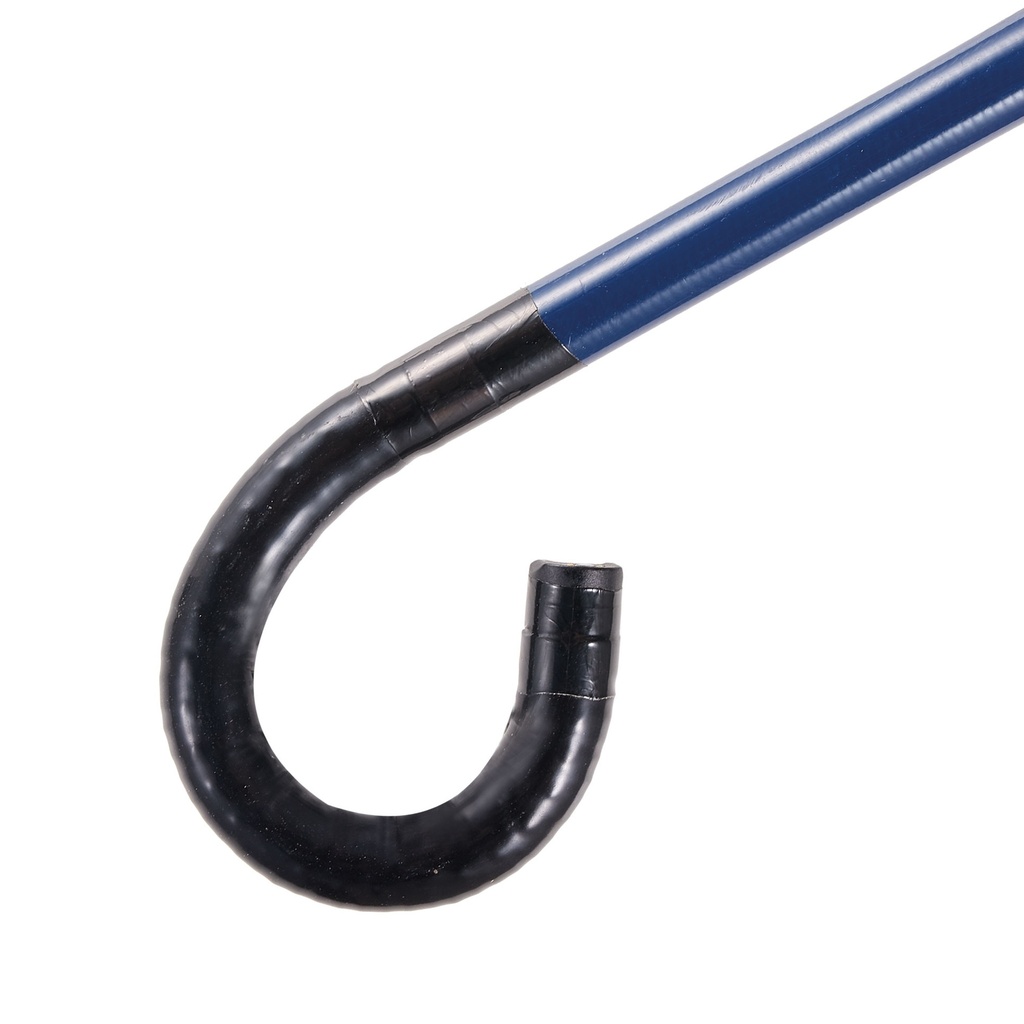

- Bending at the top / bottom: 180°
- Bending right / left: 120°
EickView 60SD “Semi-Disposable” endoscope (Art. No. 307020)
- Working length: 60 cm
- Outside Ø: 3.2 mm
- Working channel Ø: 1.2 mm
- Direction of view: 0°
- Viewing angle: 120°
- Bending top / bottom: 210°
