Empowering diagnosis – enhancing animal care

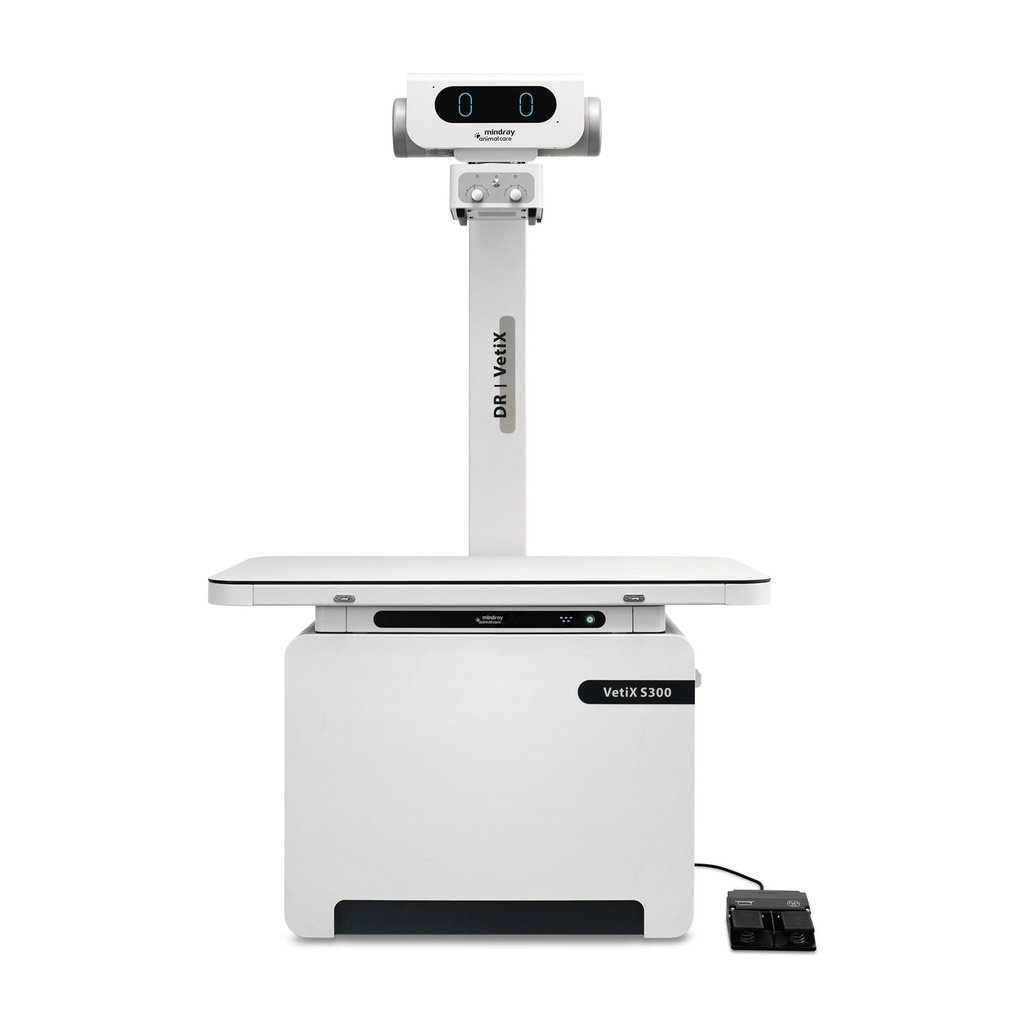

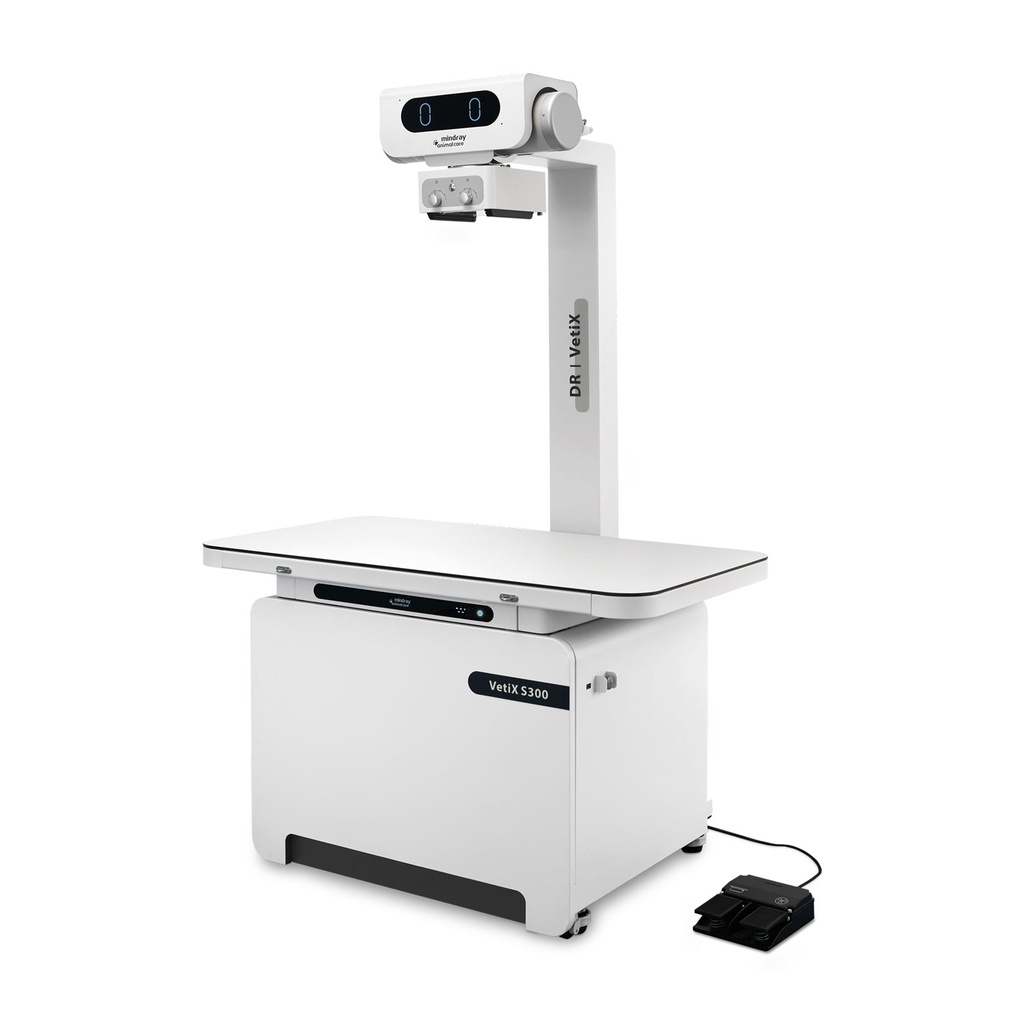

The VetiX S300 is a state-of-the-art Veterinary DR X-Ray System from Mindray Animal Medical. With more than 30 patents, it combines a high-quality X-ray tube with a latest generation fl at panel detector in a modern X-Ray system. Together with a well-designed veterinary-specifi c workfl ow and professional imaging solutions it is an excellent choice for veterinary surgeons looking for quality, reliability, and innovation in veterinary radiology.
High-quality X-ray tube
The Canon X-ray tube provides a high heat capacity for a +100,000-exposure service life.
- Maximum generator power: 32 kW
- kV range: 40 to 125 kV
- mA range: 10 to 500 mA
Ultra-high frequency inverter
An industry’s unique inverter frequency of 460 kHz enhances radiation quality, reduces radiation noise, improves image quality, and allows for exposure times from 1ms to 8 seconds.
High-performance flat panel detector
The integrated CsI panel offers a large coverage area of 17 x 17 inches, ultra-fast acquisition times and an amazing 9.4 Megapixel resolution.
Veterinary-specific workflow
iFast – one-key power on and off
- This feature offers convenience and saves time
iSolo – single-operator workflow
- Conduct the entire examination process on a single interface
iShotHelper – professional positioning guidance
- Offers detailed guidance for accurate positioning
iVocal – voice controlled exposure
- Allows exposure with a single voice command.
Advanced imaging technology
Relying on Mindray’s powerful X-ray algorithm technology, the system presets suitable image exposure parameters for various animals. Intelligent algorithms automatically optimise parameter combinations.
- Graphical interface for dogs, cats, and other animals
- Free kV, mA, mAs parameter combination
Professional veterinary imaging workstation
The integrated image acquisition workstation with a large LED display allows a simple, minimalist, and efficient workflow.
- Built-in professional veterinary toolkit
- LAN / WLAN connection
- DICOM 3.0
Stationary Floating Table
The floating 4-way tabletop with electromagnetic brakes considerably simplifies patient positioning.
- Power supply: 240 volts AC
- Footswitch incl. 3 m cable
- Dimensions (in cm): L 150 x W 81 x H 190
